480W Compact Double 8" Line Array Speaker For Installation , Church
, Conference, Nightclub
Quick Detail:
Full range line array speaker, 480W @ 8ohm, P.Audio 1.4"(voice coil diameter 2.5" ) Neodymium HF driver, 2pcs 8" ferrite drivers, compact plywood
cabinet, good sound quality,for indoors applications and small
outdoors events.
Description:
LA-208 + LA-208S line array speaker system is designed for small
living event and indoors applications with high requirements on
SPL, sound quality, stability, and dispersion.

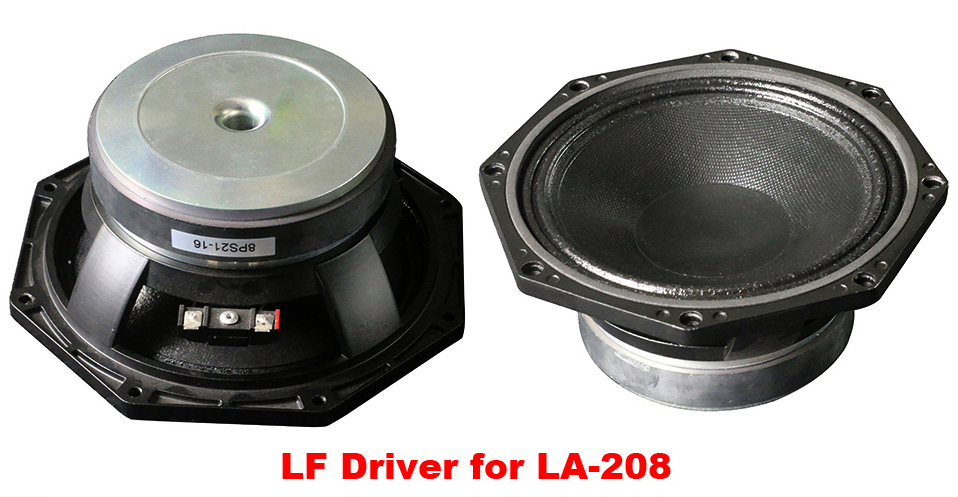

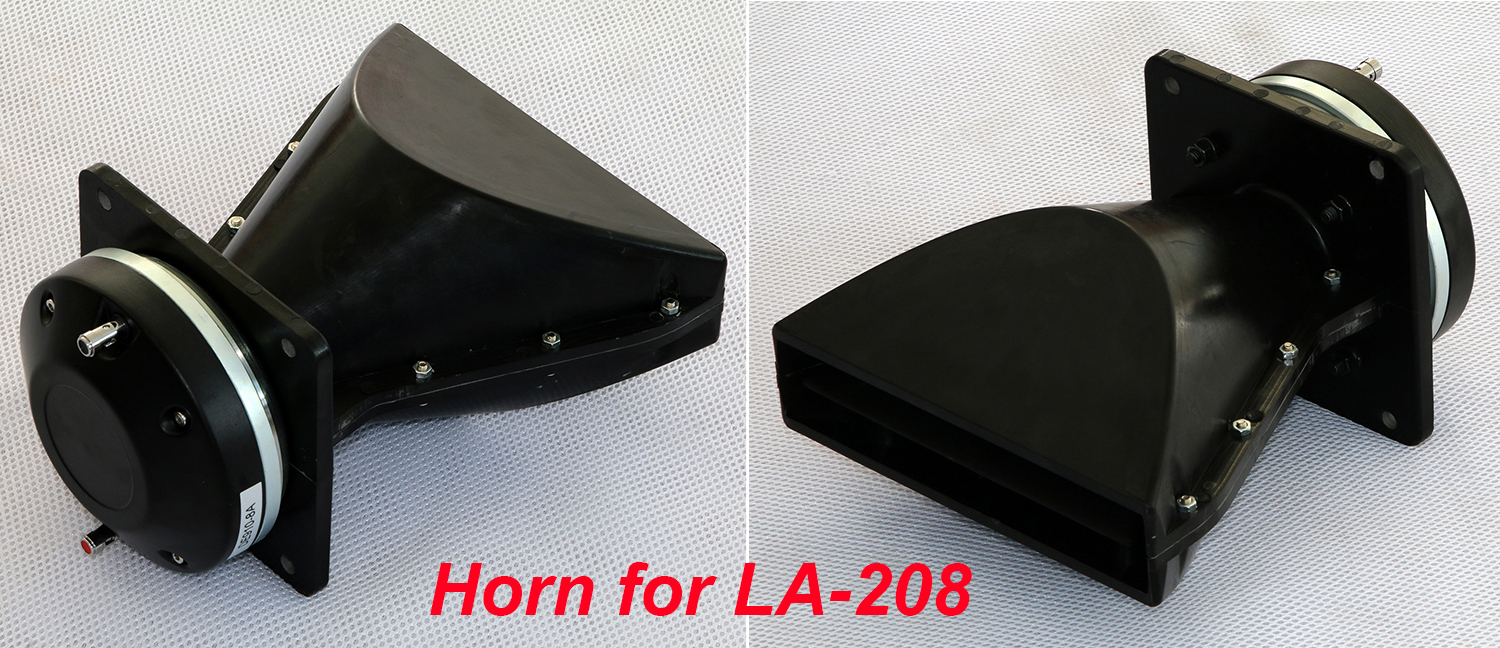

LA-208 is fixed with 1pcs P.AUDIO 1.4" neodymium HF driver(8 ohm) and 2pcs 8" Ferrite LF
drivers(impedance for each: 8 ohm).

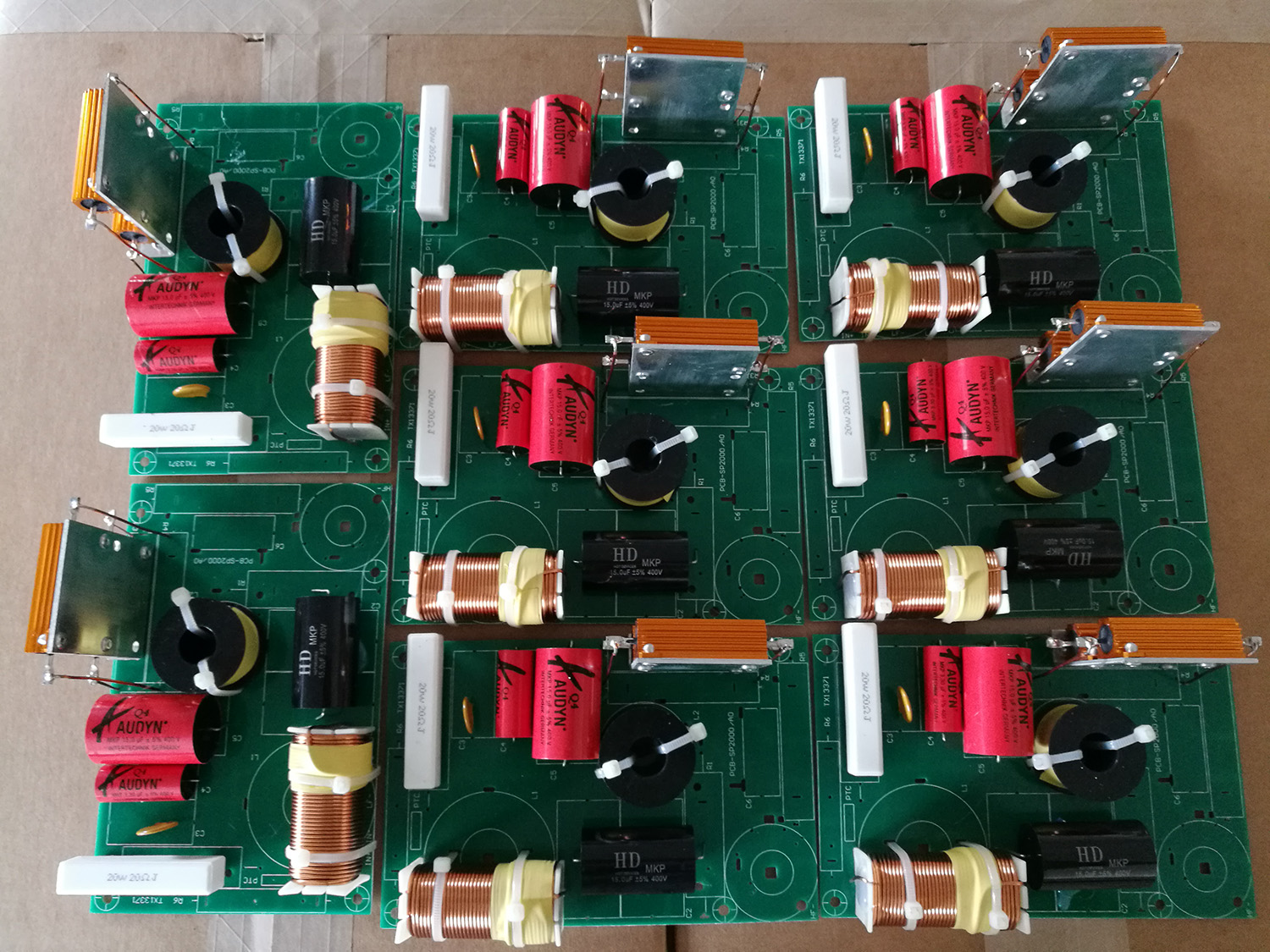

Crossover mode: PASSIVE(with built-in crossover,and the impedance for each LA-208
is 8 ohm) and German AUDYN capacitors are fixed at the crossover
for HF driver to reproduce fast and clean sound. You can use our FP 10000Q(MST-4130) switching amplifiers to drive LA-208 speakers: 1pcs
FP10000Q(MST-4130 has 4 channels, and each channel can drives 2 pcs
LA-208 at 4 ohm. So, 1pcs FP10000Q(MST-4130) can drive atmost 8pcs
LA-208.
We pay closer attention on details than other Chinese suppliers.
LA-208 is fixed with one aluminium panel at the cabinet back, and
all letters are laser-engraved on the aluminium panel. It makes the
loudspeaker look more professional and higher end.
Sometimes, in order to get better sound or make the cabinet look
more beautiful and professional, we may make some little changes
with cabinet dimensions, cabinet interior structure, horn
dispersion, flying hardware, and handle position.

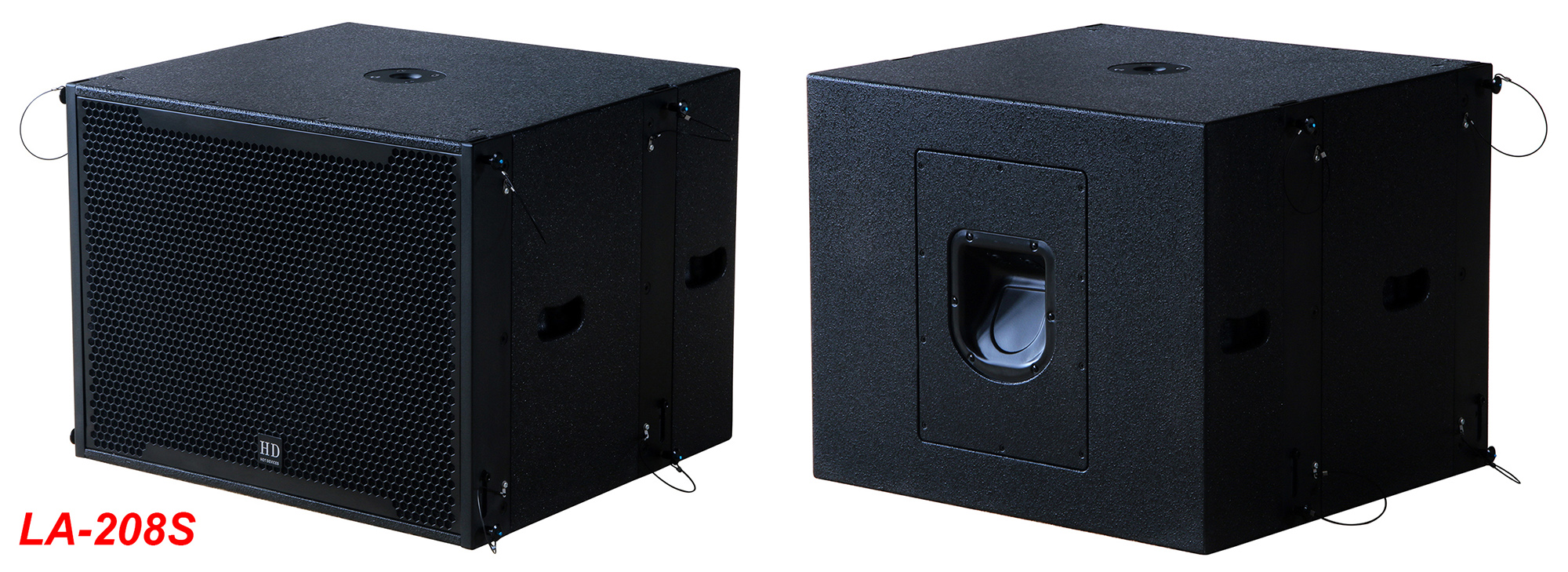

LA-208S is one compact subwoofer fixed with single 18" LF driver with
power handling capacity 600W (rms). You can fly LA-208S together
with LA-208, you can stack LA-208S on the ground as well.
System configuration:
To set up LA-208 + LA-208S line array speaker system, you can
choose our 4 channel switching amplifier FP 10000Q(MST-4130), and DC36(or DC48) signal processor,according to loudspeaker quantity.
If you want dual 18" subwoofer(s) to put on the ground, then, you
can choose our M-528B(direct radiating, for indoors applications) or LA-218SB(horn loaded design, mainly for outdoors applications). And you can
choose our TOP-1200 analogue amplifier or FP 14000(MST-2350)
switching amplifier to drive it.
White/Black/Gray finish available for options to meet the
requirements for different venues.

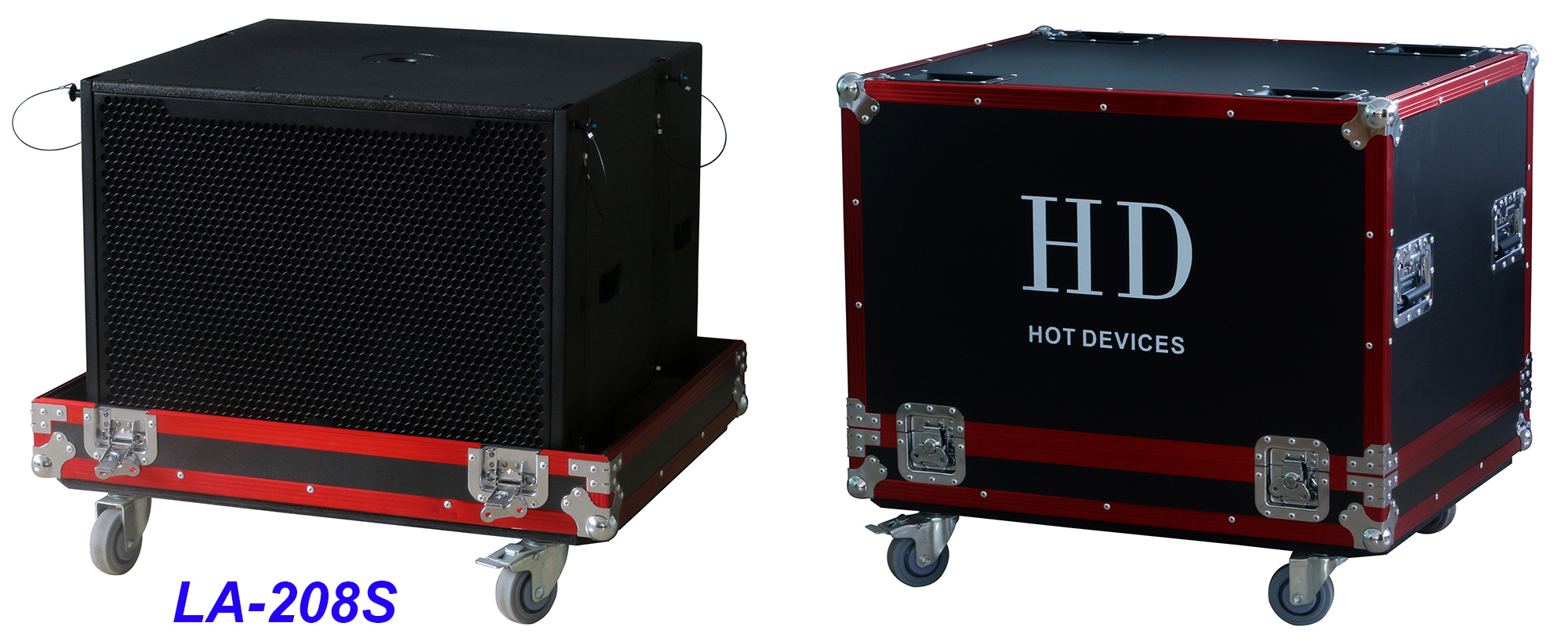

To avoid damage and scratch during transport,according to
customers’ requirement,we can put the items in flight cases.
If LA-208 + LA-208S system can not meet your requirements, you can
visit our website to find other options like LA-205 + LA-205S, LA-110 + LA-110S, LA-210 + LA-218SB, LA-212 + LA-218SB.
Want high resolution pictures, have further questions and want to
know prices? For a fast and easy communication, please contact us
at Whatsapp and our number for Whatsapp is +86 13512754579. Our FACEBOOK page: MasterSound.GuangZhou. Or you can send your detailed requirements to
our mailbox info@master-sound.cn.
Applications:
Small living event,and indoors applications like club, conference,
school, and church.
Specifications:
| LA-208 (Crossover Mode: PASSIVE) | LA-208S |
| Components: | 1.4"(Neodymium driver, voice coil Φ 2.5")+2x8" | 1x18" |
| Nominal Impedance: | 8 ohm | 8 ohm |
| RMS Power Handling: | 480W | 600W |
| Frequency Response: | 70-18KHz | 30-180Hz |
| Crossover Point: | 2 KHz | ------ |
| Sensitivity(1W/1M): | 98dB | 99dB |
| Max. SPL: | 123dB | 126dB |
| Dispersion(HxV): | 120°x8° | ------ |
| Dimensions(HxWxD): | 249x660x440mm | 444x624x472mm |
| Packing Dimensions: | | |
| Net Weight(Kg): | 24.8 | 40 |
| Connector: | 2xNL4MP | 2xNL4MP |
Competitive Advantage:
Neodymium HF driver, PASSIVE crossover mode, high power handling
capability, good sound quality, light weight, flying system for
easy operation, beautiful mesh grille design
