680W Full Range Line Array Speaker With 1.4"+2x10" Neodymium
Drivers For Concert, Living Event, Church, Nightclub, Disco And
Installation
Quick Detail:
Full range Q1 line array speaker, fixed with neodymium drivers
1.4"(voice coil Φ 3")+2x10", 680W@8ohm, crossover mode is
PASSIVE(with built-in crossover in the cabinet, and the crossover
is fixed with AUDYN capacitors-the ones d&b, CODA, TW AUDIO and
other big brands use in their loudspeakers), compact plywood
cabinet, high quality sound, strong fiberglass horn with
dispersion(HxV) 75° x 15°, vertical dispersion of the line array
speakers can be adjusted via the flying hardware at the cabinet
sides, you can fly the speaker system for outdoors applications,
use it in fixed installation, or stack them on ground.
Description:
This line array speaker system is designed for applications with
high requirements on SPL, sound quality, throw distance, and
dispersion. And, this system can be used in outdoors applications
like touring concert and living show, and indoors applications like
disco, nightclub, conference and church.
Q1 is fixed with 1pcs 1.4" HF and 2pcs 10" LF neodymium drivers. The
cabinet design and cabinet dimensions are exactly the same as
original Q1. We just changed the crossover mode to PASSIVE(with
built-in crossover in the cabinet, and the crossover is fixed with
AUDYN red Q4 series capacitors-the ones d&b, CODA, TW AUDIO and
other big brands use in their loudspeakers). Q1 is one full range
speaker and the impedance of each speaker is 8 ohm.
LA-218SB When you fly Q1 in concert, we suggest you stack dual 18"
subwoofers LA-218SB on the ground to get better LF sound effect.
System configuration:
To set up Q1 + LA-218SB line array speaker system, you can choose
our most popular 4-channel switching amplifier FP 10000Q(Also model MST-4130: 4*1300W@8ohm and 4*2200W@4ohm) for Q1. For outdoors applications,
use light weight 2-channel switching amplifier FP 14000(Also model MST-2350: 2*2400W@8ohm and 2*4800W@4ohm) to drive horn loaded subwoofer
LA-218SB. LSC36(3-input, 6-output) and LSC48(4-input, 8-output) digital signal processors are available for
options according to the quantity of speakers.
Let us know your requirements on the system or tell us what kind of
applications they are, we will offer you one solution---send you
one sheet with models,quantity and cost of the
products(loudspeakers, amplifiers, processors, cables, connectors,
flight cases, rack.....) for your project. Various package
available for your projects of different scale.

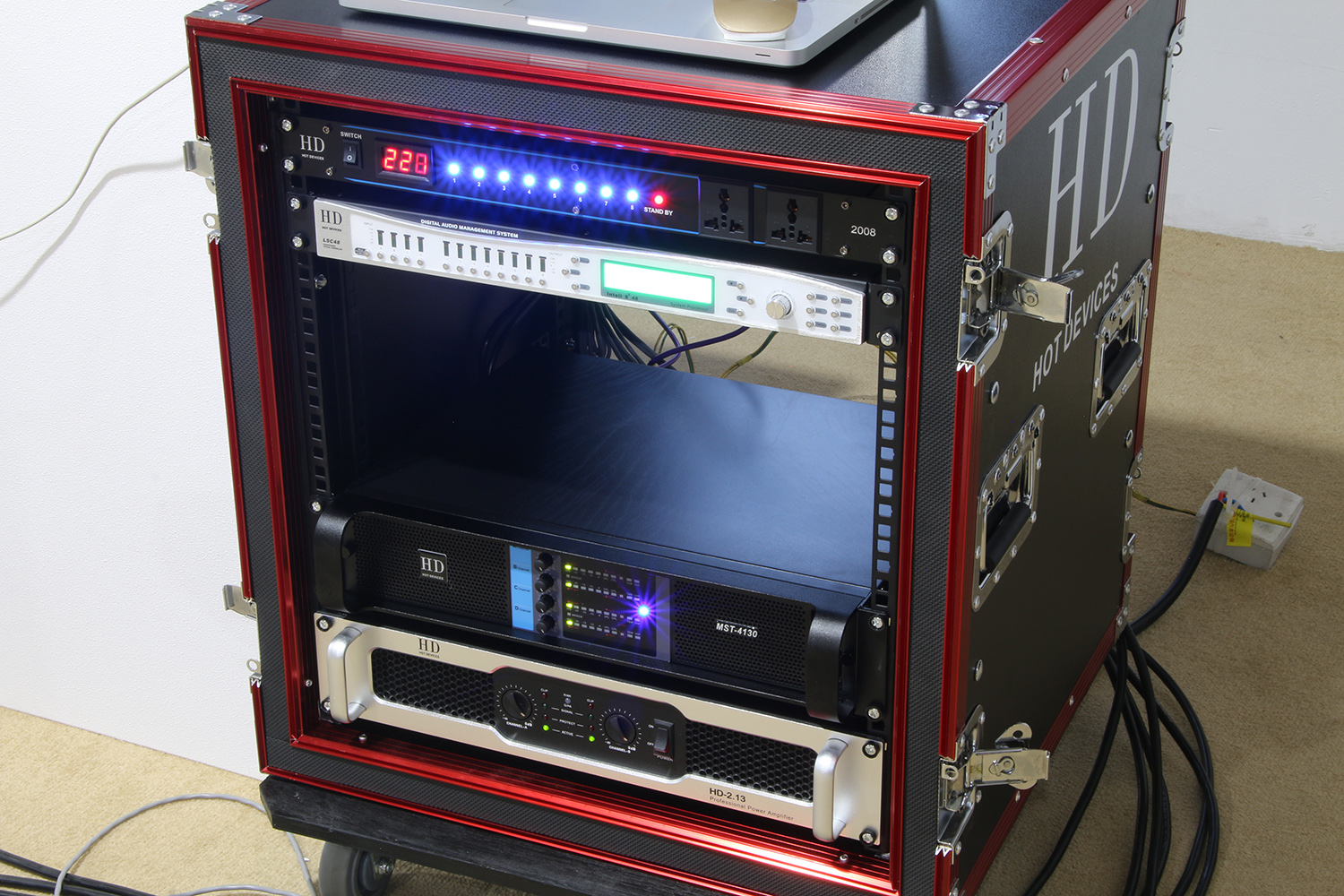

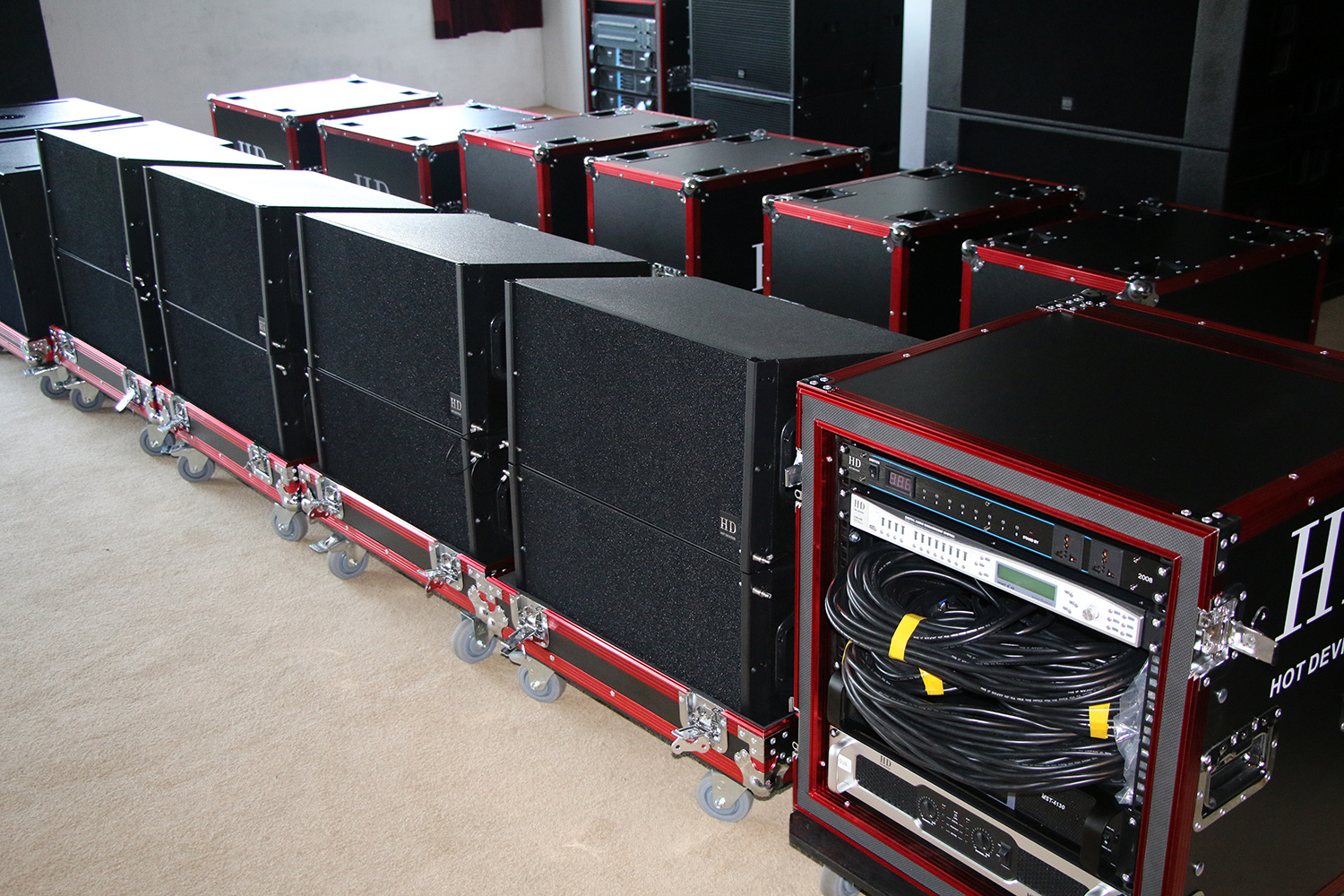

To avoid damage and scratch during transport,according to
customer’s requirement,we can put the items in flight cases.
Black/Gray/White/Purple finish available for different
applications.
Applications:
Touring, Concert, Living Show, Living Event, night club, disco,
theatre,and fixed installation in other venues
Specifications:
| Q1 (Crossover Mode: PASSIVE) | Q-Sub | LA-218SB (Horn Loaded Design) |
| Components: | 1.4"+2x10" (All Neodymium Drivers) | 1x18" | 2x18" |
| Nominal Impedance: | 8 ohm | 8 ohm | 4 ohm |
| RMS Power Handling: | 680W | 600W | 1600W |
| Frequency Response: | 45Hz-18KHz(-3dB) | 35-220Hz(-3dB) | 35-220Hz(-3dB) |
| Crossover Point: | 2.5 KHz | ------------------- | ------------ |
| Sensitivity(1W/1M): | 101 dB | 98 dB | 104 dB |
| Max. SPL: | 129 dB(continous), 135 dB(peak) | 126 dB(continous), 132 dB(peak) | 132 dB(continous), 138 dB(peak) |
| Dispersion(HxV): | 75 °x15 ° | -------------- | ------------ |
| Dimensions(HxWxD): | 308x580x410mm | | 586x1156x918mm |
| Flight Case Dimensions(HxWxD): | | | 820x1230x980mm |
| Net Weight(Kg): | 22 | | 95 |
| Connector: | 2xNL4MP | 2xNL4MP | 2xNL4MP |
Competitive Advantage:
Fixed with Neodymium drivers, PASSIVE crossover mode, high power,
high sensitivity, good sound quality, light weight, flying system
easy for operation, beautiful and compact cabinet design, economic
package
