Dual 12 Inch 1560W Birch Plywood Line Array Speaker With Neodymium
Drivers For Touring Concert , Big Living Event
Quick Detail:
Birch Plywood line array speaker, neodymium drivers, 1560W, good
sound quality , hardware for easy flying
Description:
LA-212 line array speaker is designed for applications with high
requirements on SPL, sound quality, throw distance, and
dispersion.This line array loudspeaker system can be used in
touring concert, disco, nightclub, living show, stadium, church and
other applications.
LA-212 is a 3-way line array speaker fixed with 2pcs P.Audio 1.4" HF neodymium compression drivers, 4pcs 6.5" MF neodymium drivers and 2pcs 12" LF
neodymium drivers. Crossover mode-ACTIVE.
The cabinet is made of high grade birch plywood to get one better
sound,high durability and high safety.
Sometimes, in order to get better sound or make the cabinet look
more beautiful and professional, we may make some little changes
with drivers, cabinet dimensions, cabinet interior structure, horn
dispersion, flying hardware, and handle position.

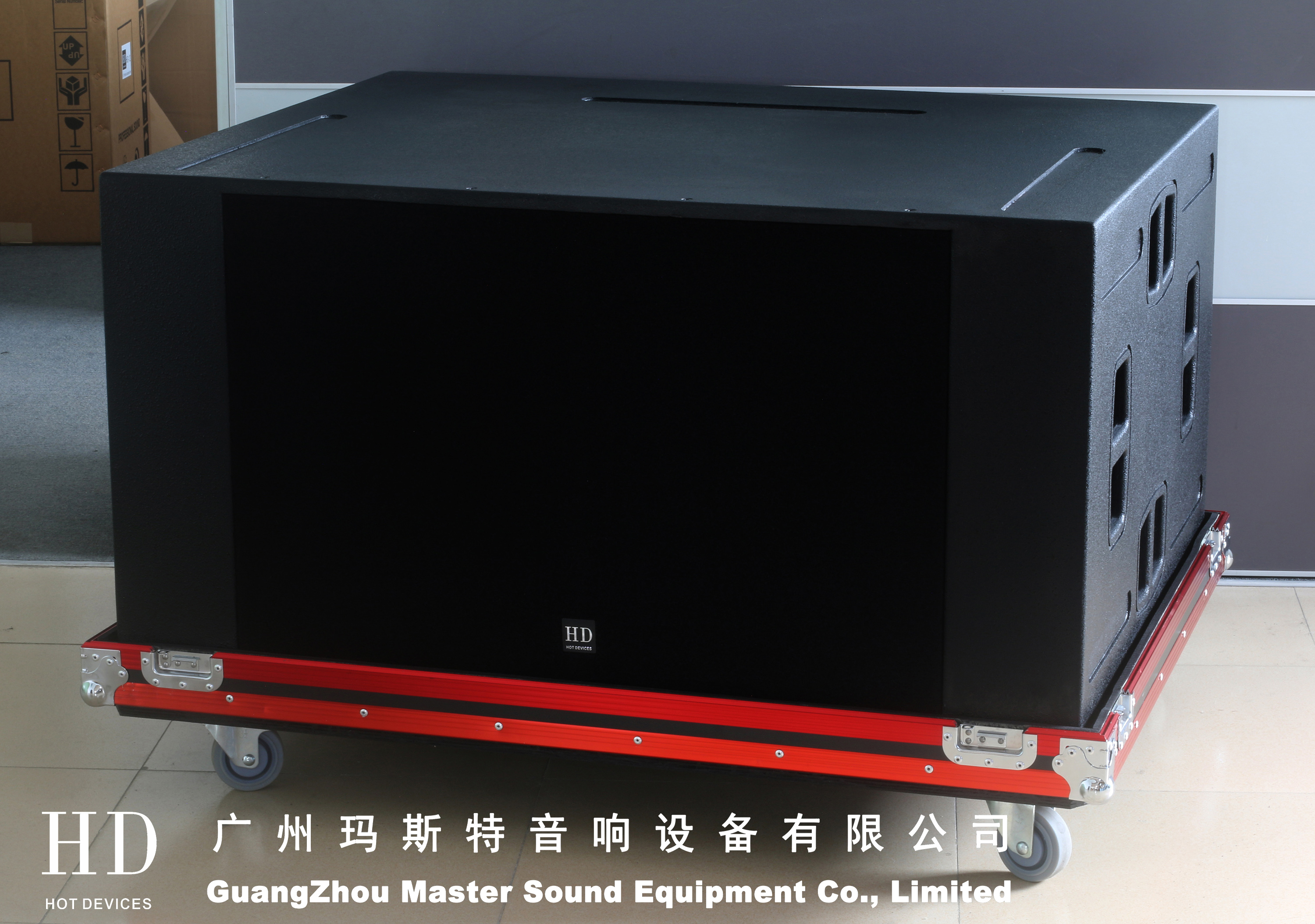

LA-218SB is one horn-loaded dual 18" subwoofer with power handling capacity
1600W@4ohm.
System configuration:
To set up LA-212 + LA-218SB line array speaker system, you can
choose our 4 channel switching amplifier FP 10000Q(MST-4130) for LA-212 and 2 channel switching amplifier FP14000(MST-2350) for LA-218SB. And LSC36(or LSC48) signal processor,according to loudspeaker quantity.
White/Black/Gray finish available for options to meet the
requirements for different venues.

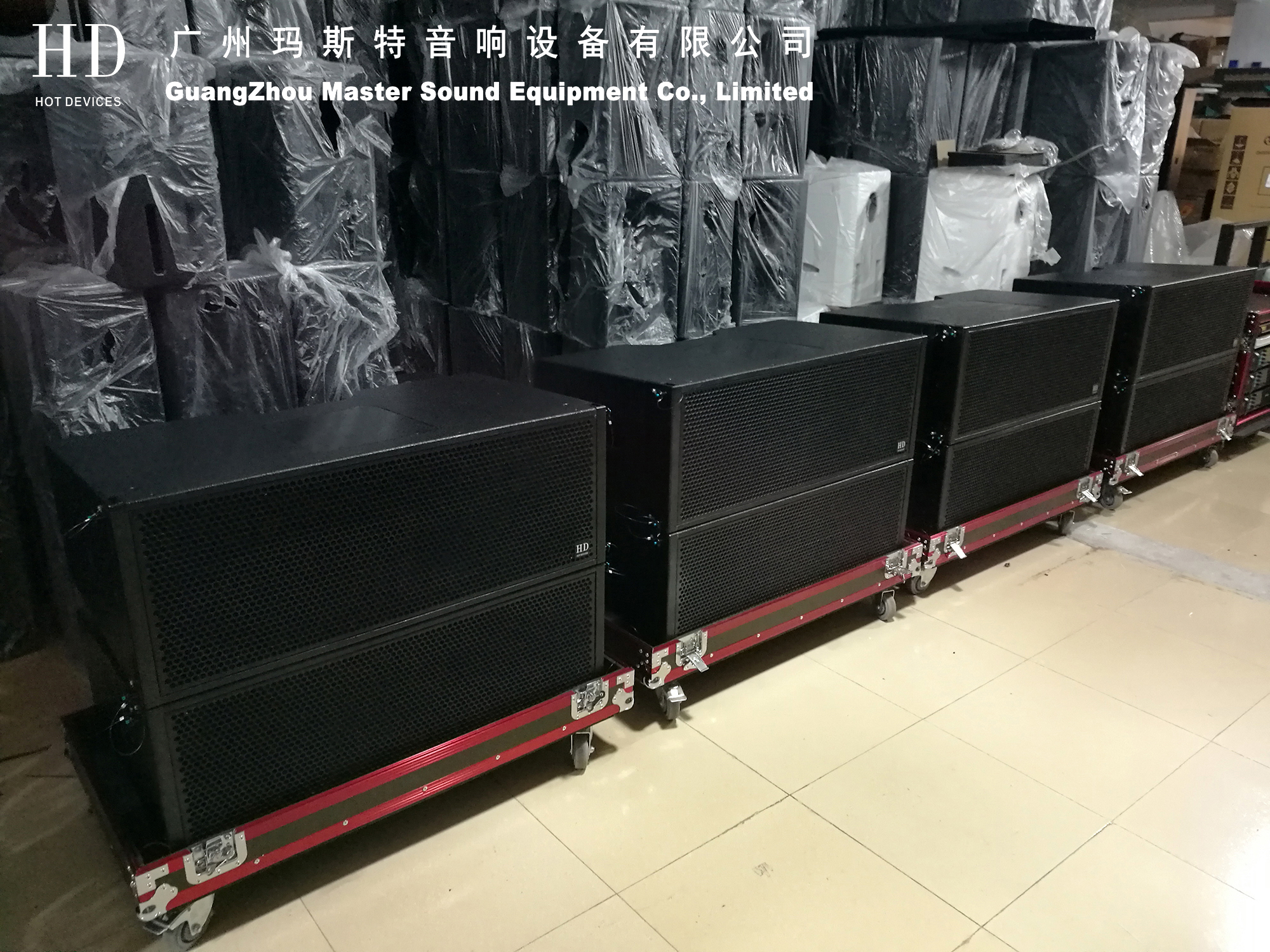

To avoid damage and scratch during transport,according to
customers’ requirement,we can put the items in flight cases.
Want high resolution pictures, have further questions and want to
know prices? For a fast and easy communication, please contact us
at Whatsapp and our number for Whatsapp is +86 13512754579. Our FACEBOOK page: MasterSound.GuangZhou. Or you can send your detailed requirements to
our mailbox info@master-sound.cn.
Applications:

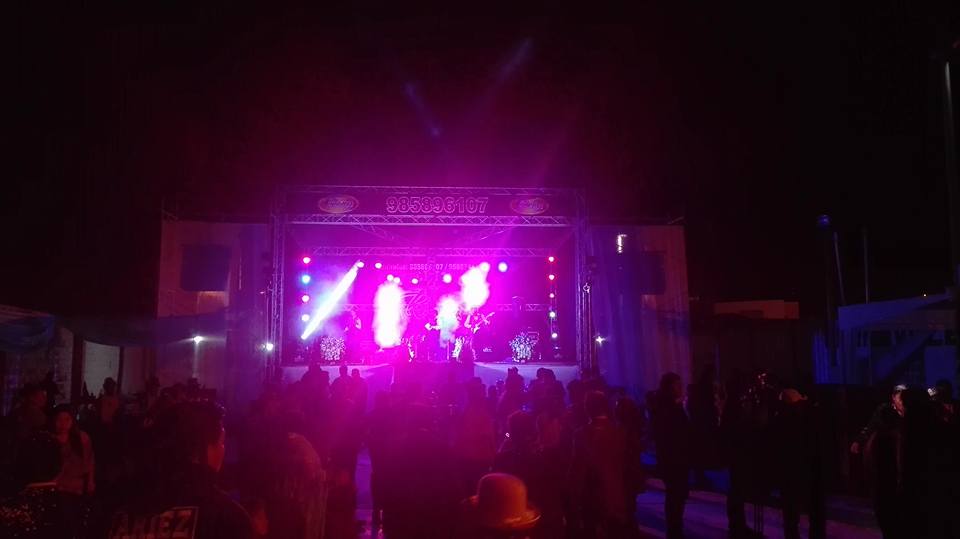

Touring, Concert, Living Show, Living Event, night club, disco,
theatre,and fixed installation in other venues
Specifications:
| LA-212 (Crossover Mode: ACTIVE) | LA-218SB (Horn Loaded Design) |
| Components: | HF: 2*1.4"(Neodymium, voice coil Φ 2.5")
MF: 4*6.5"(Neodymium)
LF: 2*12"(Neodymium) |
2*18" |
| Nominal Impedance: | HF/MF/LF--8Ω/8Ω/16Ω | 4Ω |
| RMS Power Handling: | HF/MF/LF--2*80W/4*150W/2*400W | 1600W |
| Frequency Response: | 50Hz-18KHz(-10dB) | 35-220Hz |
| Crossover Point: | ---- | ---- |
| Sensitivity(1W/1M): | LF-105 dB, MF-110 dB, HF-116 dB | 104 dB |
| Max. SPL: | 129 dB | 138 dB |
| Dispersion(HxV): | 120°x8° | ---- |
| Dimensions(HxWxD): | 368x966x556mm | 586x1156x918mm |
| Carton Dimensions: | 1060x650x458mm(1pcs in 1 carton) | |
| Flight Case Dimensions: | 1110x620x955mm(2pcs in 1 flight case) | 820x1230x980mm |
| Net Weight(Kg): | 49 | 100 |
| Connector: | 2xNL8MPR | 2xNL4MP |
Competitive Advantage:
P.Audio Neodymium drivers, active crossover mode, high power handling
capability, good sound quality, light weight, flying system easy
for operation, beautiful mesh grille design
