680W Full Range Line Array Speaker With 1.4"+2x10" Neodymium
Drivers For Concert, Living Event, Church, Nightclub, Disco And
Installation
Quick Detail:
Full range LA-210 line array speaker, fixed with neodymium drivers
1.4"(voice coil Φ 3")+2x10", 680W@8ohm, crossover mode is
PASSIVE(with built-in crossover in the cabinet, and the crossover
is fixed with AUDYN capacitors-the ones d&b, CODA, TW AUDIO and
other big brands use in their loudspeakers), compact plywood
cabinet, high quality sound, strong fiberglass horn with
dispersion(HxV) 120° x 8°, vertical dispersion of the whole line
array speaker system can be adjusted via the flying hardware at the
cabinet back, you can fly the speaker system for outdoors
applications, use it in fixed installation, or stack them on
ground.
Description:
This line array speaker system is designed for applications with
high requirements on SPL, sound quality, throw distance, and
dispersion. And, this system can be used in outdoors applications
like touring concert and living show, and indoors applications like
disco, nightclub, conference and church.
LA-210 is fixed with 1pcs 1.4" HF and 2pcs 10" LF neodymium drivers. The
cabinet design and flying hardware design is much better than Q1.
LA-210 sound is clean, natural....and make you feel comfortable,
not like Q1-the sound is compressed too much.
The crossover mode is PASSIVE(with built-in crossover in the
cabinet, and the crossover is fixed with AUDYN red Q4 series
capacitors-the ones d&b, CODA, TW AUDIO and other big brands
use in their loudspeakers). LA-210 is one full range speaker and
the impedance of each speaker is 8 ohm.

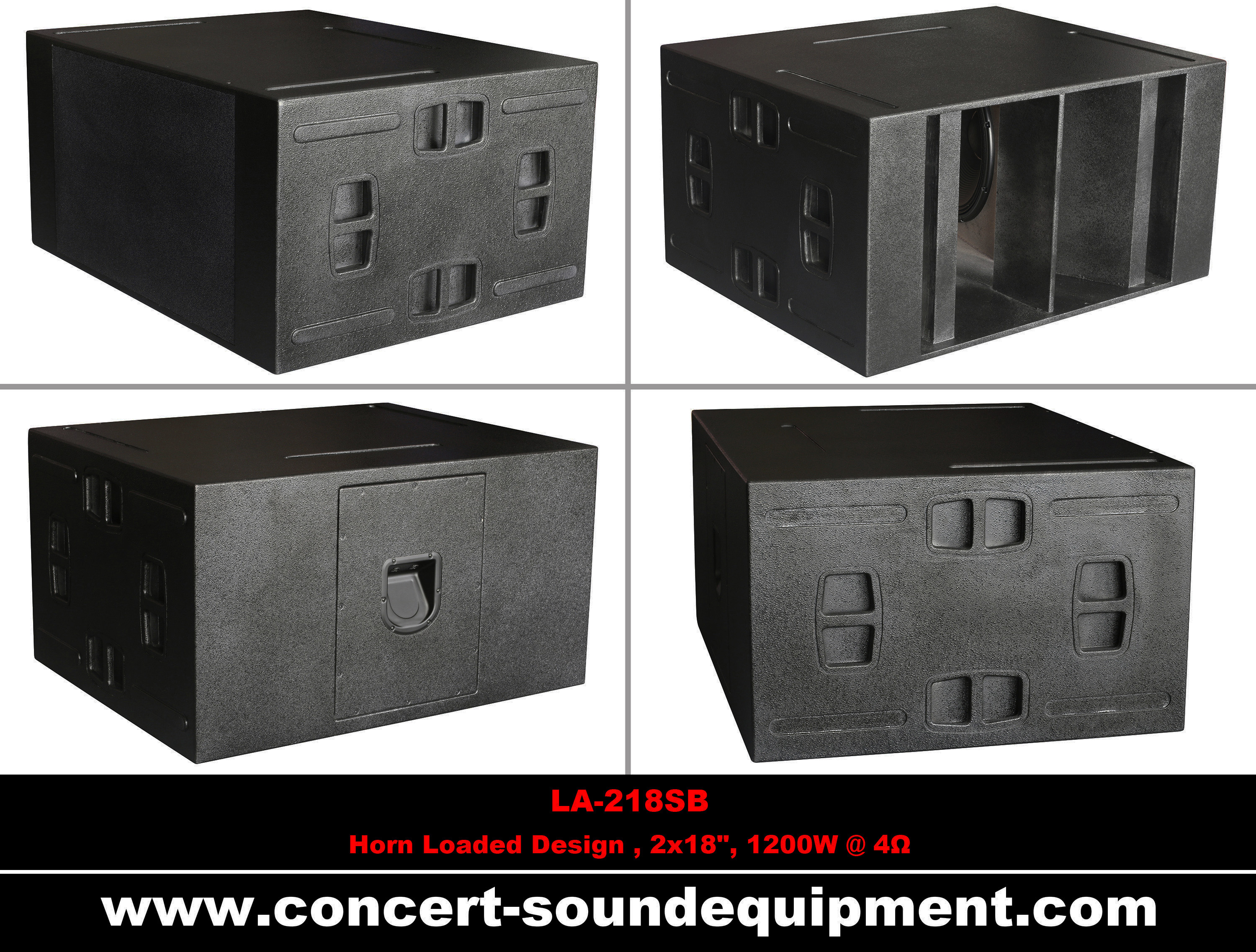

LA-218SB When you fly LA-210 in outdoors applications, we suggest you stack
dual 18" horn loaded subwoofers LA-218SB on the ground to get
better LF sound effect.
System configuration:
To set up LA-210 + LA-218SB line array speaker system, you can
choose our most popular 4-channel switching amplifier FP 10000Q(Also model MST-4130: 4*1300W@8ohm and 4*2200W@4ohm) for LA-210. For outdoors
applications, use light weight 2-channel switching amplifier FP 14000(Also model MST-2350: 2*2400W@8ohm and 2*4800W@4ohm) to drive horn loaded subwoofer
LA-218SB. LSC36(3-input, 6-output) and LSC48(4-input, 8-output) digital signal processors are available for
options according to the quantity of speakers.
Let us know your requirements on the system or tell us what kind of
applications they are, we will offer you one solution---send you
one sheet with models,quantity and cost of the
products(loudspeakers, amplifiers, processors, cables, connectors,
flight cases, rack.....) for your project. Various package
available for your projects of different scale.
If LA-210 + LA-218SB system can not meet your requirements, you can
visit our website to find other options like LA-205 + LA-205S, LA-208 + LA-208S, LA-110 + LA-110S, LA-212 + LA-218SB.
Want high resolution pictures, have further questions and want to
know prices? For a fast and easy communication, please contact us
at Whatsapp and our number for Whatsapp is +86 13512754579. Our FACEBOOK page: MasterSound.GuangZhou. Or you can send your detailed requirements to
our mailbox info@master-sound.cn.
Applications:
Touring, Concert, Living Show, Living Event, night club, disco,
theatre,and fixed installation in other venues
Specifications:
| LA-210 (Crossover Mode: PASSIVE) | LA-210S (BANDPASS Design) | LA-218SB (Horn Loaded Design) |
| Components: | 1.4"+2x10" (All Neodymium Drivers) | 1x18" | 2x18" |
| Nominal Impedance: | 8 ohm | 8 ohm | 4 ohm |
| RMS Power Handling: | 680 W | 600 W | 1600 W |
| Frequency Response: | 60Hz-18KHz(-3dB) | 35-220Hz(-3dB) | 35-220Hz(-3dB) |
| Crossover Point: | 1.9 KHz | --------------------- | ------------ |
| Sensitivity(1W/1M): | 101 dB | 98 dB | 104 dB |
| Max. SPL: | 126 dB(continous), 132 dB(peak) | 126 dB(continous), 132 dB(peak) | 132 dB(continous), 138 dB(peak) |
| Dispersion(HxV): | 120°x8° | --------------------- | ------------ |
| Dimensions(HxWxD): | 305x800x522mm | 575x800x700mm | 586x1156x918mm |
| Flight Case Dimensions(HxWxD): | | | 820x1230x980mm |
| Net Weight(Kg): | 32.4 | | 100 |
| Connector: | 2xNL4MP | 2xNL4MP | 2xNL4MP
|
Competitive Advantage:
Fixed with Neodymium drivers, PASSIVE crossover mode, high power,
high sensitivity, good sound quality, light weight, flying system
easy for operation, beautiful and compact cabinet design, economic
package
